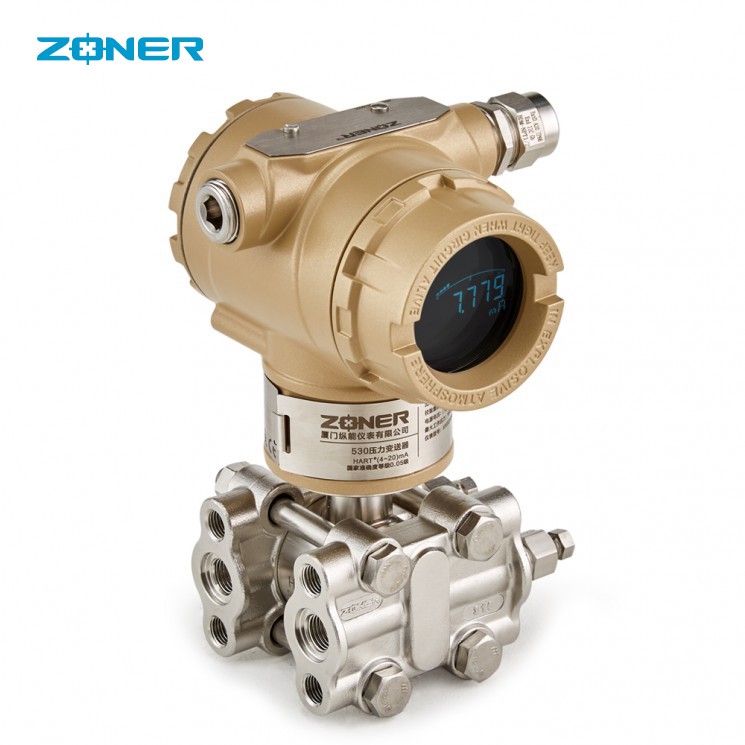

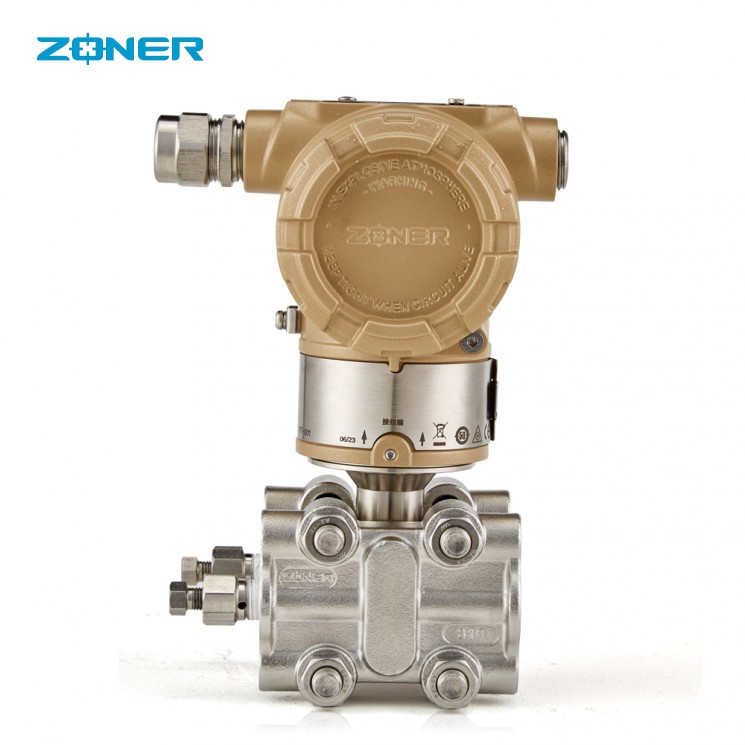

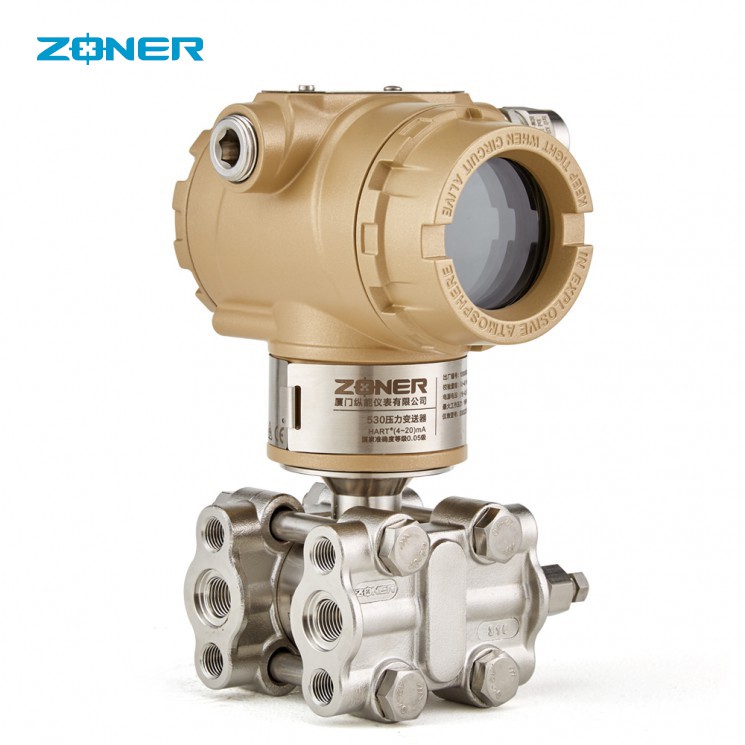

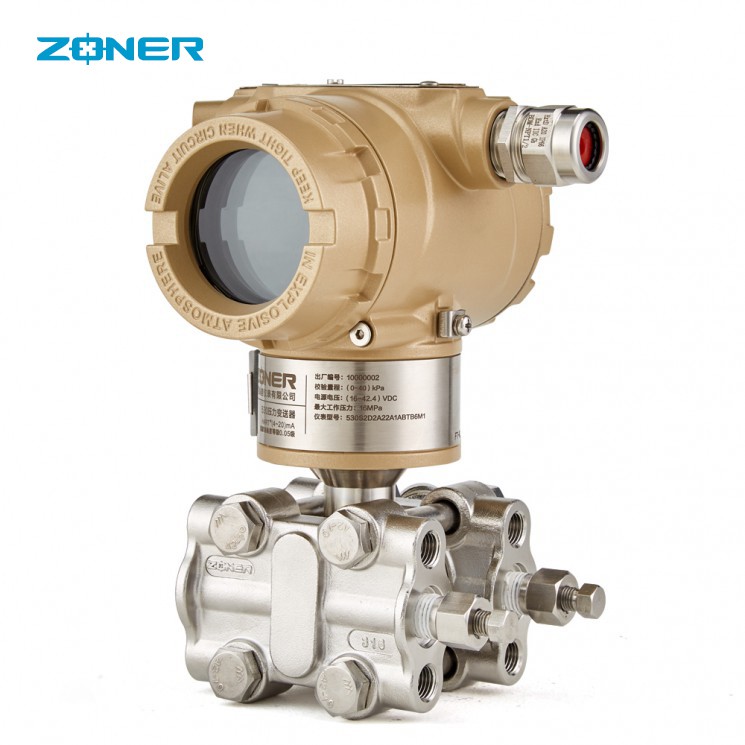

ZONER™ 530 Series Pressure Transmitters

The sensor chips of this series of pressure transmitters are the latest generation products developed based on MEMS (Micro-Electro-Mechanical Systems) technology, adopting the piezoresistive silicon measurement principle.

ZONER 530 pressure transmitter enables more effective control of factory processes and reduces holding costs. Through the asset management system, you can access comprehensive data from metering devices and monitor their health status in real-time via self-diagnostic functions. This proactive approach prevents potential issues, thereby enhancing both production efficiency and operational safety in your facility.

Measures both gauge pressure and absolute pressure for gases, steam, and liquids

Measurement of liquid level, volume, mass and density

Used with differential pressure throttling device for flow measurement

Differential pressure detection for filters, pumps, or other equipment to determine process conditions

Features

☑ Adopts core sensor chips with independent intellectual property rights

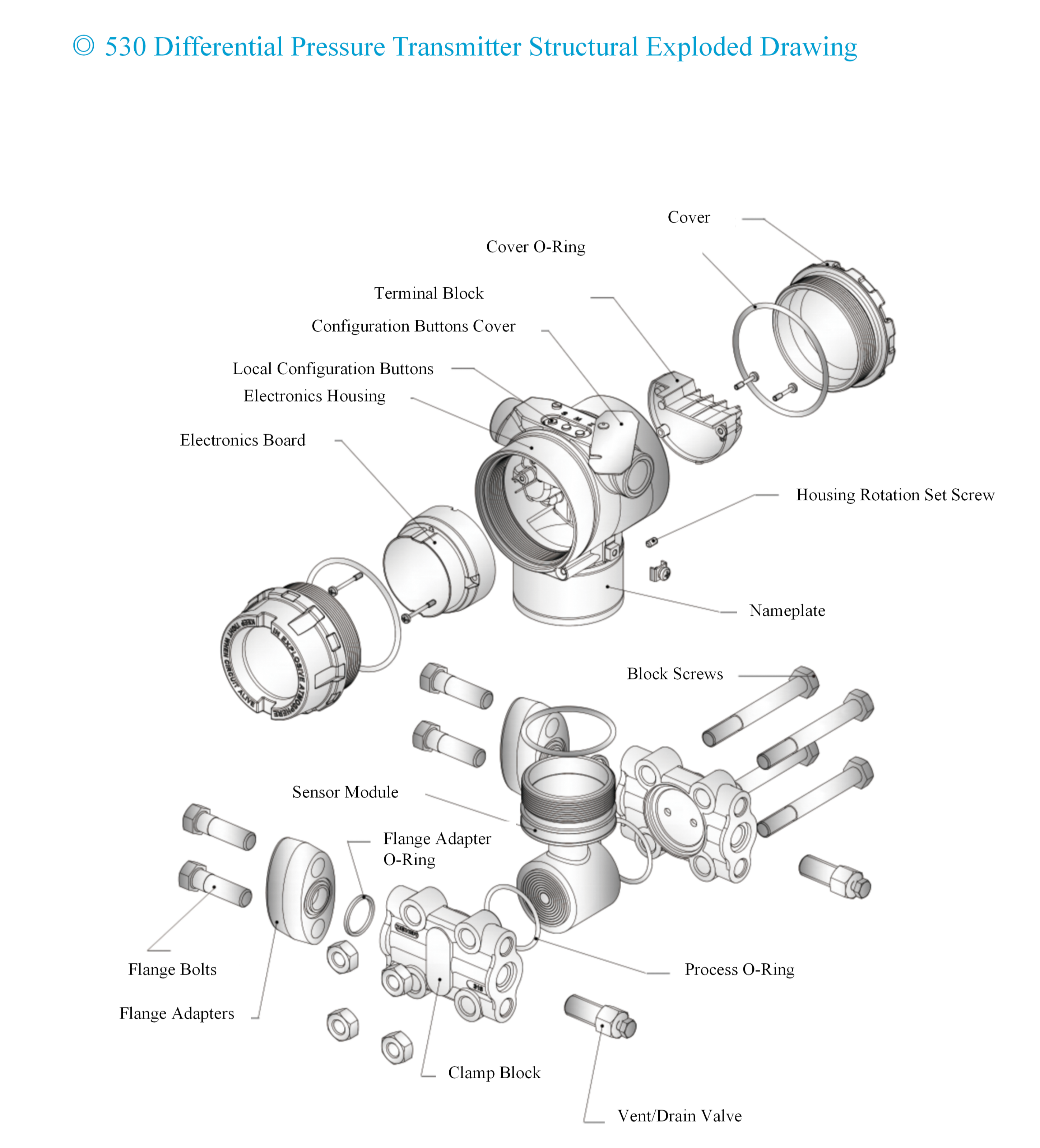

☑ Modular connector design ensures a simpler and more reliable internal structure

☑ Optional Bluetooth communication function for convenient instrument operation

☑ Maximum accuracy of ±0.04% of the measured value

☑ Stability maintained at ±0.1% of full-scale range per 3 years

☑ Certified with SIL2/3 (IEC61508)

☑ Certified with EU ATEX intrinsic safety and flameproof certification

☑ Equipped with hardware self-test function for fault diagnosis

☑ Intuitive instrument operation without opening the circuit chamber

☑ Optimized diaphragm sealing system enhances vacuum resistance for more reliable and stable measurement data
